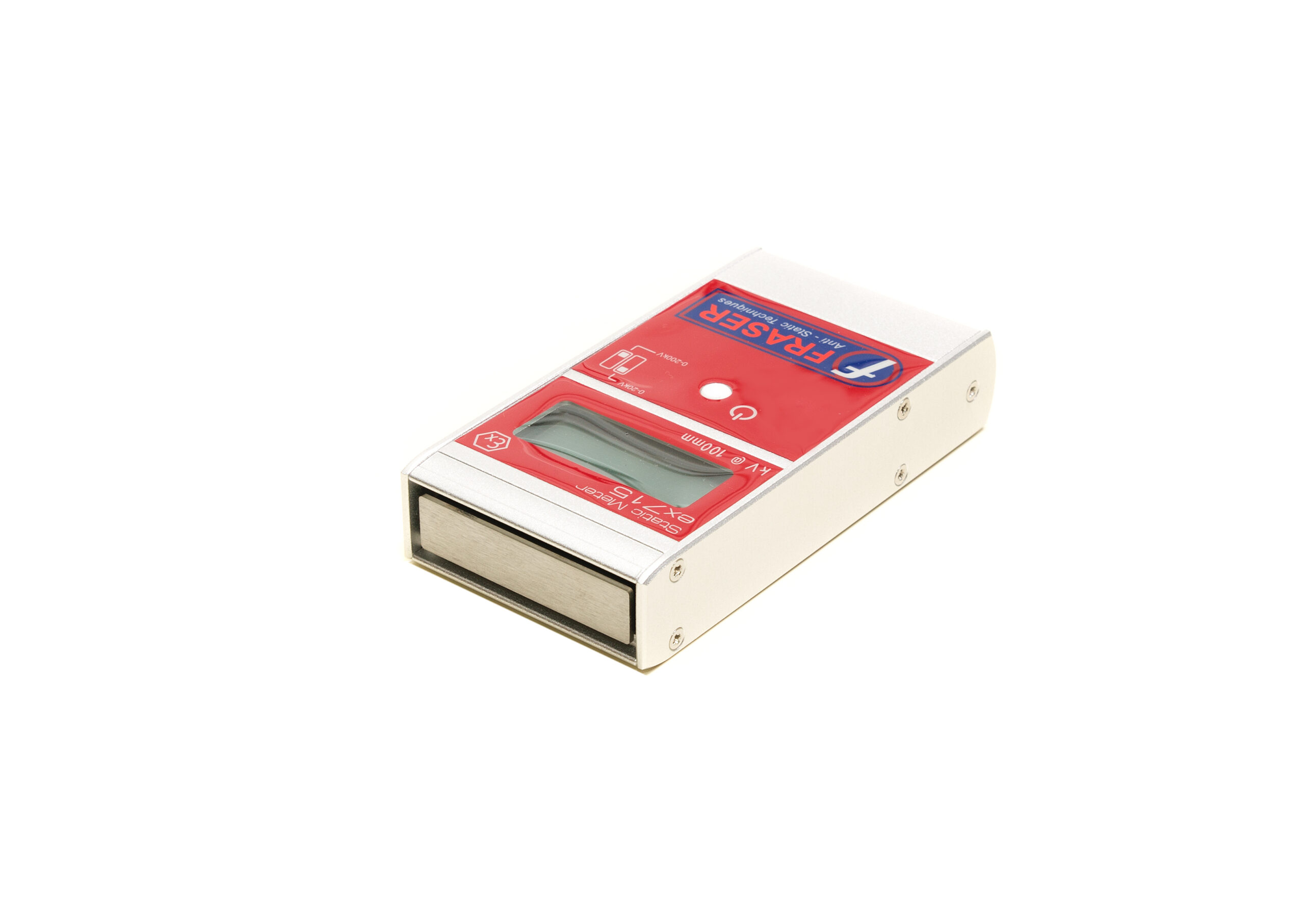

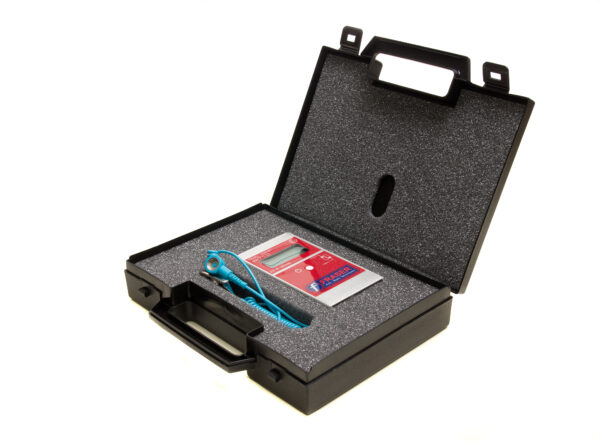

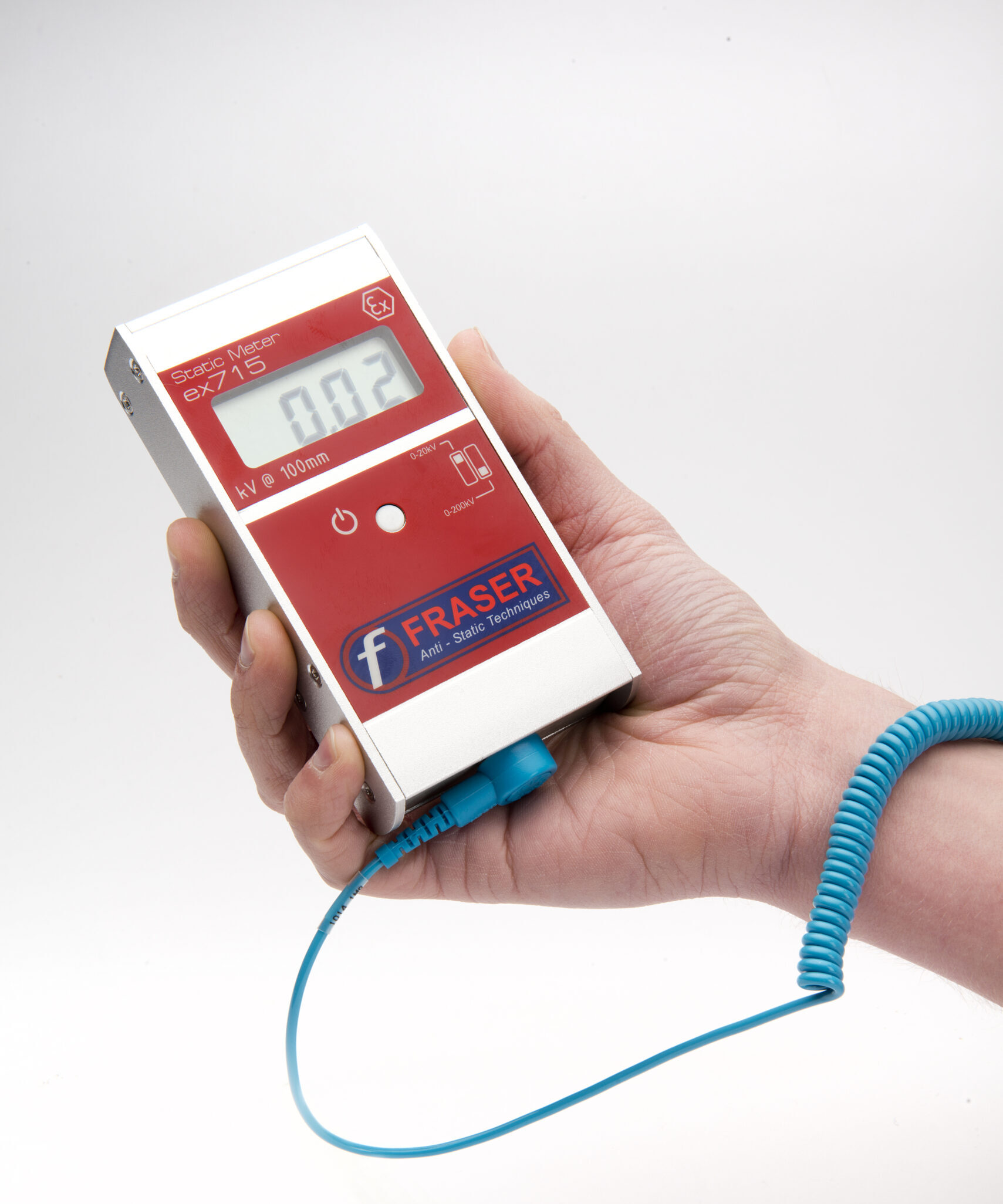

Certified for use in hazardous areas, the EX-715 Static Meter was developed to investigate industrial static problems.
The EX-715 measures electrostatic levels from 10 V up to 200,000 V on the surface of a material or body at a distance of 100 mm. The meter, which has a 'hold' function to freeze the reading on the display, has two automatically selected ranges.
0 - 20 kV (in 10 V increments)
20 - 200 kV, in 100 V increments
The EX-715 shows where and how static electricity is generated, as well as its magnitude and polarity. This gives engineers a scientific basis for analyzing static problems, monitoring the effectiveness of remedial measures, and setting levels for acceptable standards.
For more information on ATEX and IECEx certifications, download the EX-715 datasheet.
